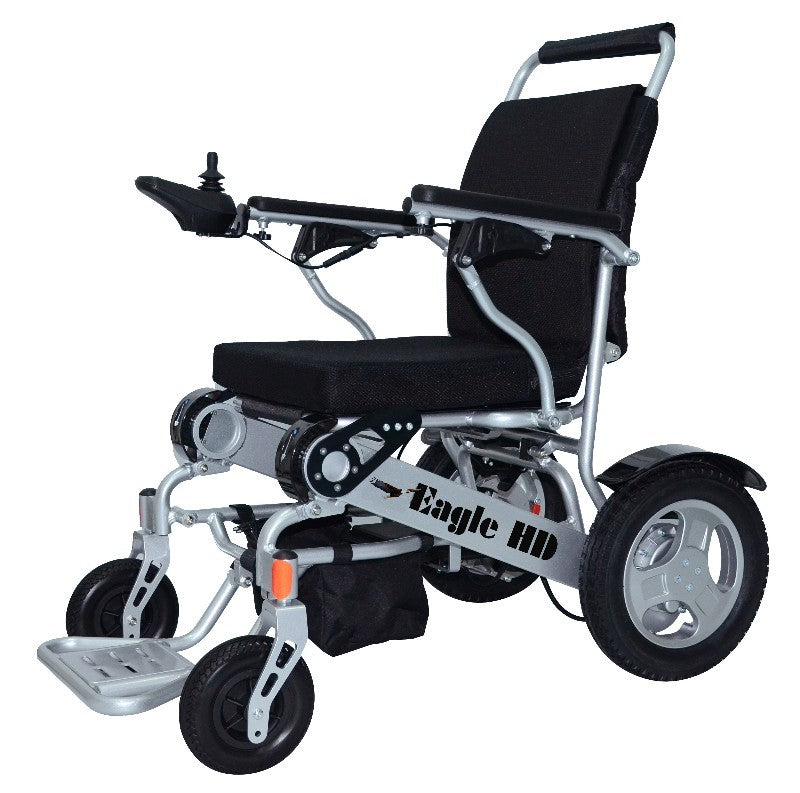

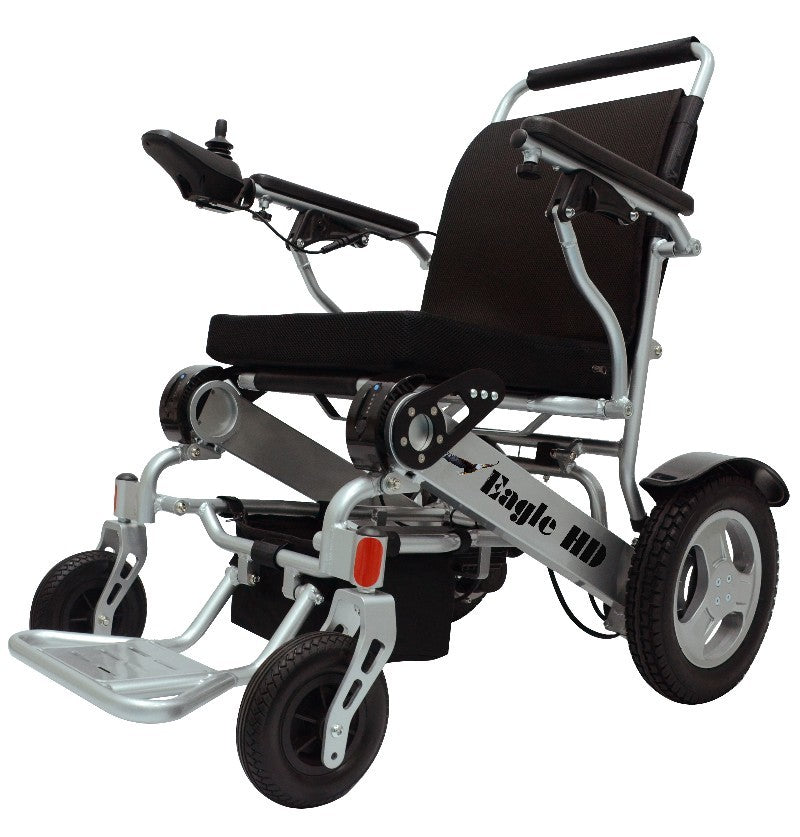

Eagle HD Bariatric Portable Wheelchair

The Eagle HD heavy duty bariatric portable power wheelchair with a weight capacity of 400 lbs only weighing 50 lbs. The Eagle HD has large 12 inch rear tires providing a smooth ride with lots of traction to allow you to travel through most any terrain. The Eagle HD is powered by two 250 watt motors providing lots of power even when going up hills and inclines. The Eagle HD also comes standard with two battery packs giving users that added range to go long distances without the concern of a dead battery.

The Eagle HD is made of a high strength aircraft quality aluminum alloy that provides high strength yet is extremely light weight allowing the Eagle HD to provide a weight capacity of 400 lbs while only weighing 50 lbs without the batteries.

Power, Strength and Portability.



Easily move the joystick from left to right and back again in seconds for right handed and left handed users.













Two 250 watt motors provides you with all the power you could possibly need even on hills and inclines. Also the Eagle HD has a freewheel or neutral option allowing it to be used as a manual chair so a caregivers can opted to push it manually.









Large dual posi-traction drive wheels provide lots of traction even in dirt and gravel.























Heavy Duty Front Casters And Front Forks That Can Easily Handel High Weight Capacity As Well As High Impact From Rough Terrain.

















The Eagle HD Heavy Duty Foldable Wheelchair With A 400 Lb Weight Capacity And Only Weighs 50 lbs

The Eagle HD Offers A Smooth Ride And Lots Of Power.











The Eagle HD Is Also Equipped Standard With A Extra Battery For Added Range And A Piece Of Mind.













Not only is the Eagle HD extremely light and easy to manage, it is perfect for air travel, trains, busses and cruise ships or any trips that are long-distance it’s also travel approved! The Eagle HD comes with TWO (one is FREE) Airline Compliant Non-Spillable Lithium-Ion Batteries. You can take your Eagle HD on airplanes, cruise ships, trains, public transportation and in taxi cabs (or with Uber or Lyft).

High Control Easy Touch Joystick Controller.





High Strength Aircraft Quality Aluminum Alloy Frame.









Power to Spare

"TWO" 250 Watt Motors provides the Eagle HD with power to spare that will take across some of the most difficult surfaces like packed gravel, cobble stones, dirt, grass, inclines and more.

The Eagle HD is also equipped with Free Wheel "Neutral Feature" that will allow the motors to be disengaged so that it then can be pushed manually.



The Eagle HD Folds Into A Compact Area That Is Only (13" x 31" x 24") And Will Fit In The Trunk Of Most Any Car. Even A Small Compact Car Will Accommodate The Eagle HD Folding Power Wheelchair.

The Eagle Hd Only Weighs 50 lbs And Can Easily Carry Up To 400 lbs.

Performance, Power & Strength.























The Award Winning Eagle HD Is One Of Americas Favorite Power Wheelchairs Due To Its Ability To Easily Fold With Almost No Effort Into A Small Compact Compartment.

 In Addition To Being Able To Easily Move The Joystick Controller From Left To Right And Back Again In Seconds For Right-Handed And Or Left-Handed Users, The Eagle HD Has The Ability To Easily And Virtually Effortlessly Go Up ADA Accessible Ramps, Through Grass, And Over Many Different Rough Surfaces, Making The Eagle HD Power Folding Wheelchair Naturally The Smart Choice.

















The Eagle HD Unique Design Makes Use Of The Hollow Space In The Aluminum Frame For The The Batteries On Both Sides. This Genius Engineering Design Saves Space And Weight Making Life Even Easier For You.



The Dual Lithium Batteries Provide Lots Of Power For A Longer Time And They Can Be Fully Recharged and 30 Minutes. Most Power Wheelchairs Take Eight Hours To Recharge.





The Eagle HD Joystick Controller Gives You Greater Control Over Steering And Speed.











REMOVABLE ELEVATING LEG REST

Optional Removable Elevating Swing Away Height Adjustable Leg Rest Allow A User To Elevate One Or Both Of Their Legs. In Addition They Are Easy To Remove, Allowing Them To Be Completely Out Of The Way When A User Is Getting In Or Out Of The Eagle HD. Lastly The Elevating Swing Away Height Adjustable Leg Rest Are Height Adjustable Making It Even More Comfortable To Each And Every Individual.











There are many details that make the Eagle Power Wheelchair a smart choice. Another feature is the MEMORY FOAM Seat Cushion. Not only is it comfortable, the breathable mesh fabric that covers the memory foam is easily removed and washable for lasting freshness!











Specification	Metric	Imperial
Model	D09

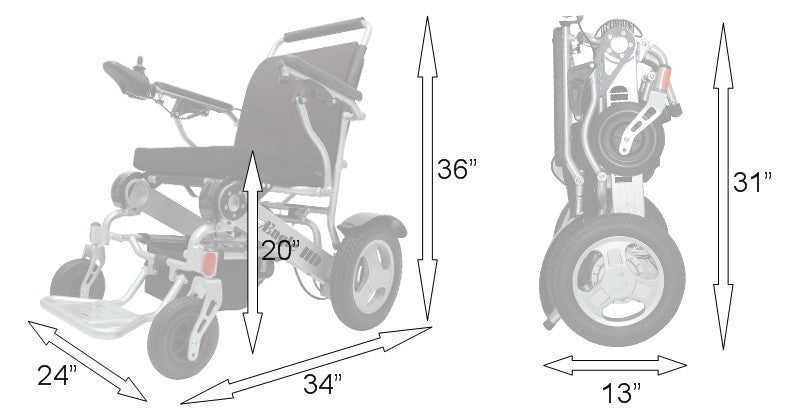

Unfolded Size	863 * 609 * 914 mm (L*W*H)	34" * 24" * 36" (L*W*H)
Folded Size	584 * 330 * 787 mm (L*W*H)	23" * 13" * 31" (L*W*H)
Weight Capacity	180 kg	400 Lbs
Seat
Width	482mm	19" Inch
Depth	421mm	17" Inch
Height	457mm	18" Inch
Back height	400mm	15.75" Inch
Motor
Type	brushless DC motor
Rated Power	250 W*2pcs
Input Power	DC 24V
Brake System	intelligent electromagnetic brake
Battery
Type	lithium battery
Capacity	6 Ah*2pcs / 144 watt Hr
Output Voltage	DC 24V
PCS	Standard with two
Controller
Type/Plug Type	assist type/European standard, 2 core
Input Power	AC 100-220 V, 50-60Hz	International (Use Anywhere In The World)
Output Voltage/Current	DC 24V, 2A
Front Wheel
Front Casters	(180 mm x 45 mm)	(7" × 1.77")
Type	solid tire
Material	PU
PCS	2 PCS
Rear Wheel
Outer Diameter/Tire Width	(320 mm x 57 mm)	(12.5" ×2.25")
Type	Solid tire
Material	PU
Number	2 PCS
Weight
Without Battery	23.5 kg	50 Pounds
With two Batteries	26.5kg	58 Pounds
Maximum Grade	12°
Driving Range	35km/ two batteries	22 Miles
Max Speed	6 km/h	(3.75 mph)
Turning Radius	835 mm	32"
Highest Obstacle Capability	40 mm	(1.57")



Please Note: Comes with one extra battery totaling two batteries. (Not Three Batteries)

SILVERADO SILVER

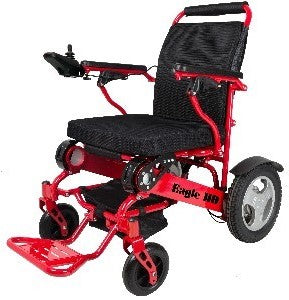

INFERNO RED

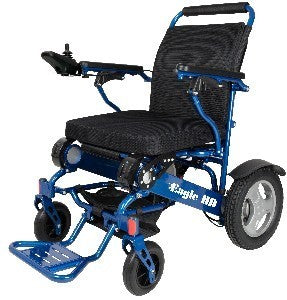

CARIBBEAN BLUE

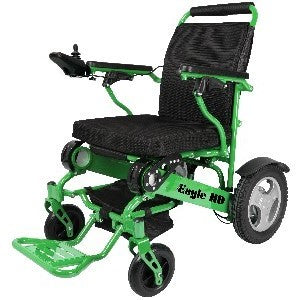

NEON GREEN

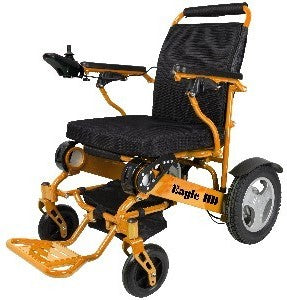

MUSTANG ORANGE

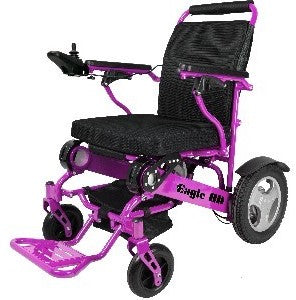

HOT FUCHSIA



Optional Head Rest   Rehab Quality Highly Adjustable Head Rest Allows The Head Rest To Be Adjusted Perfectly To Any Position Required.

Optional - Samson (Hard Shell Case)

The Samson is a Taylor made (Hard Shell Case) specifically designed to provide the perfect protection to the Eagle HD when traveling. Now you no longer need to worry about whether the airlines will damage your Eagle HD when traveling. The Samson (Hard Shell Case) almost entirely eliminates the possibility of damage to the Eagle HD.

Size: 36.5" X 26" X 17"

Weight: 24 LBS

Optional: $487.00





One Full Year In Home Service Limited Warranty.

Your new wheelchair comes with a full One Year In Home Service Warranty. Stop worrying about who would repair your wheelchair or how you would get your wheelchair to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your wheelchair should need repair. We cover the entire United States. The map below indicates the location of our service affiliates.

We include a Oxygen Tank Holder Free with the purchase of this wheelchair. This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a red arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.
