Phoenix Portable Power Wheelchair

The Phoenix is easily one of the worlds lightest foldable portable power wheelchairs. Weighting only 44 lbs and providing many upgrades and improvements not found in comparable power chairs. For example anti tip wheels, lateral arm supports that allow a user to support their enter body weight on the arm rest, flip up fold away footrest that folds "Completely out of the way" and auto connect batteries with battery gage indicator built on to each battery independently.

• The award winning Phoenix is one of americas favorite power wheelchairs due to its ability to easily fold & unfold with almost no effort into a small compact compartment.
• The Phoenix is powered by two 180 watt motors. That's a total of 360 watts providing lots of torque & power even when going up ramps, hills and inclines.
• The Phoenix is equipped with two 24v 140 watt auto-connect lithium-ion battery packs.
• The Phoenix only requires one of the two battery packs provided making the 2nd battery pack a back up for those times you realize you forgot to charge the battery. Simply slip in the extra battery and off you go.
• Some users choose to use both battery packs at the same time simultaneously. This will double your range allowing you to travel twice the distance before you will need to recharge.

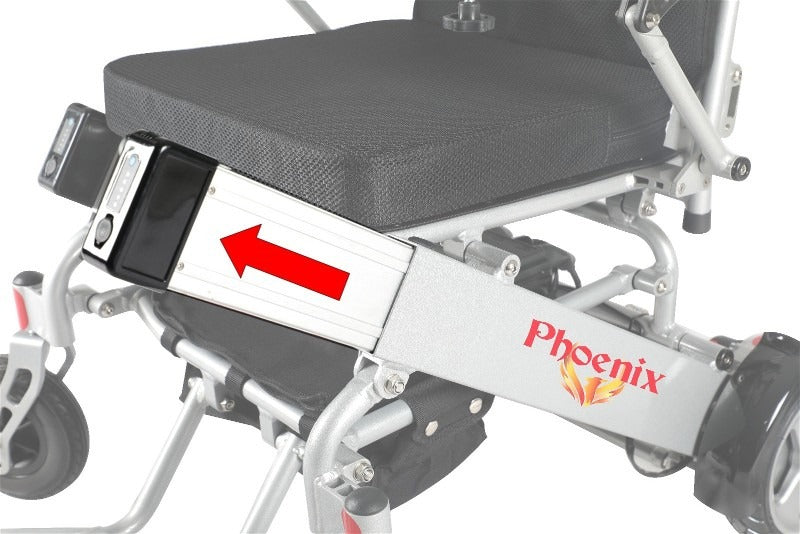

• Batteries are now auto connect & disconnect. Meaning no more need for difficult cumbersome plugs, now you simply slide in and out.
• The Phoenix is is made of a high strength aircraft quality aluminum alloy making it very strong and extremely light weight.
• The Phoenix is also equipped with an easy fold clip allowing even the most challenged users the ability to fold and unfold the Phoenix.
• Now a standard feature on every Phoenix, lateral "Arm supports" making the flip up arm rest incredibly strong. Users can now support their full body weight on the the top of arm rest with no concern of excessive deflection or bending.

Not only is the Phoenix extremely light and easy to manage, it is perfect for air travel, trains, busses and cruise ships or any trips that are long-distance it’s also faa (federal aviation association) airline travel approved! The Phoenix comes with two (one is free) airline compliant non-spill-able lithium-ion batteries. You can take your Phoenix on airplanes, cruise ships, trains, public transportation and in taxi cabs (or with uber or lyft).

• Large dual posy-traction rear drive wheels that provide lots of traction even in grass, dirt & gravel.
• Heavy duty front casters and front forks that can easily handel a weight capacity of 285 lbs as well as tolerate high impact from rough terrain.

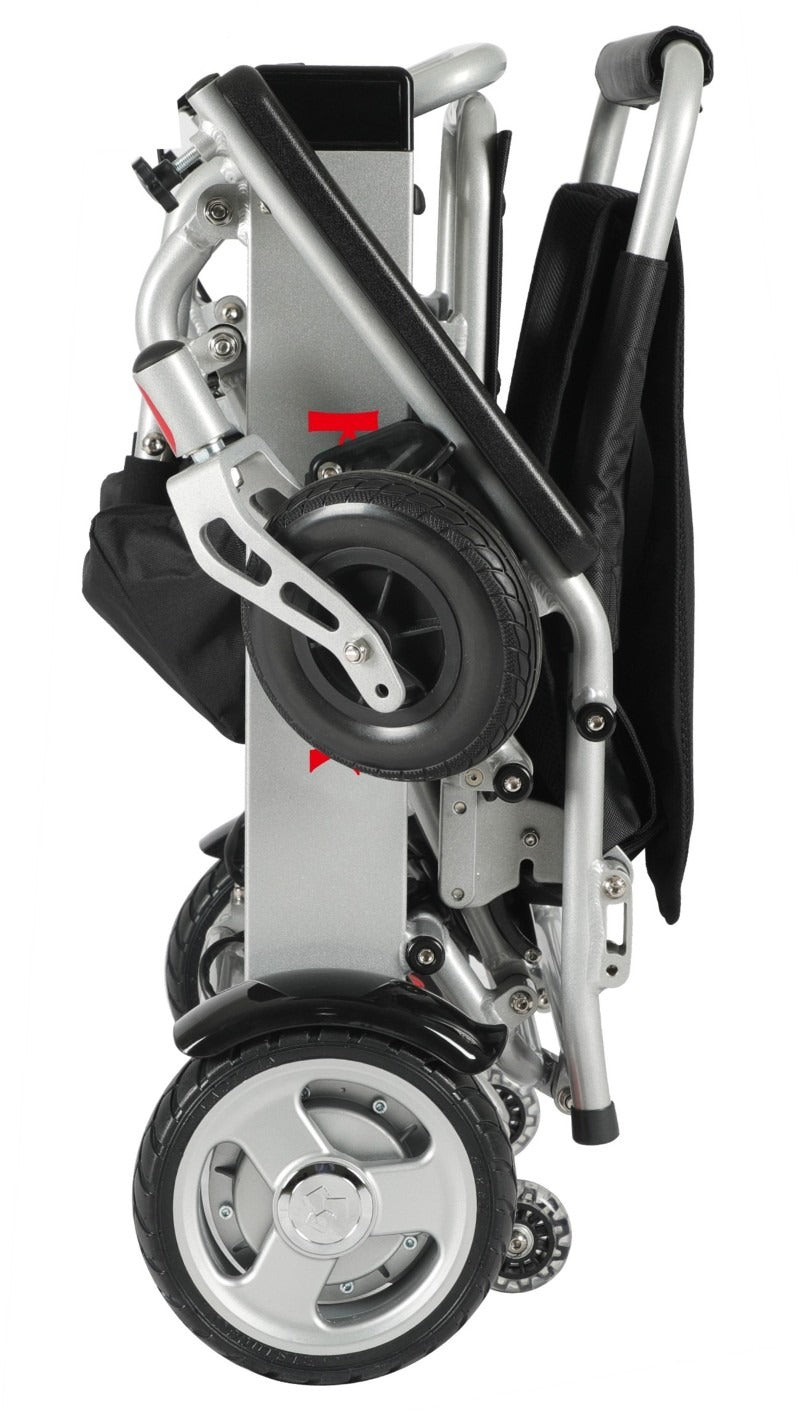

• The Phoenix will fold into a compact area that is only (12.5" x 29" x 24") and will fit in the trunk of most any car. Even a small compact car will accommodate the Phoenix folding power wheelchair.
• The Phoenix frame is easily the strongest frame ever made for a folding power wheelchair. During frame testing the frame of the Phoenix actually outperformed some of the solid ridged frames that don't even fold.
• The designers and engineers of the Phoenix have taken years of history learning exactly what people want and incorporated it all into their deign for the Phoenix giving it the absolute perfect size width, length and height.
• Two 180 watt motors provide you with all the power you could possibly need even on hills & inclines. Also the Phoenix is equipped with a freewheel or neutral option allowing it to be pushed manually from room to room.
• The Phoenix only weighs 44 lbs and can easily carry up to 265 lbs. Comes standard with a memory foam 19 inch wide seat cushion and rear anti tip wheels.

There are many details that make the Phoenix power wheelchair a smart choice. Like the flat free tires, endurance front casters, programmable joystick control, or the memory foam seat cushion. That is not only very comfortable, the breathable nylon fabric that covers the memory foam cushion is also easily removed and washable for lasting freshness! Optional removable elevating swing away height adjustable leg rest allow a user to elevate one or both of their legs. In addition they are easy to remove, allowing them to be completely out of the way when a user is getting in or out of the Phoenix. Lastly the elevating swing away height adjustable leg rest are height adjustable making it even more comfortable to each and every individual.

• Rear anti tip wheels provide a strong layer of safety preventing a user from tipping the Phoenix backwards and provides the user with a sense of security.
• Arm rest expansion kit is available for those that need more space between the armrest. The Phoenix comes standard with 19 inches between each armrest. This kit allow you to expand the armrest to 22 inches between each armrest.
• The Phoenix offers a smooth ride, extreme comfort, anti tip wheels, supported arm rest, auto contact battery contacts, battery back up & lots of power.
• The Phoenix folds up in just seconds into a small compact space. Perfect for traveling by plain, buss, train or even a cruise ship.
• Easy to control simple touch joystick controller. That can easily be moved from left arm to right arm or from right arm to left arm in just minutes to accommodate both right handed & left handed users.
• The Phoenix lightweight portable folding power wheelchair weighting only 44 pounds is super lightweight with all the features every user wants to see. A memory foam 19 inch wide seat, auto contact lithium-ion batteries, lateral arm rest supports, large footrest that folds completely out of the way & easy clip fold & unfold.
• Optional fully adjustable rehab quality headrest. Allow the users that need it to support their neck & head. This headrest is virtually adjustable to any user even those with the most extreme needs.
• The Phoenix has a unique design that makes use of the hollow space in the aluminum frame for the the batteries on both sides. This genius engineering design saves space and weight making life even easier for you.
• The dual lithium batteries provide lots of power for a longer time and they can be fully recharged and 30 minutes. Most power wheelchairs take eight hours to recharge.
• The Phoenix folds up easily into a compact size allowing it to fit in the trunk of most any car, truck or suv.

  Feature	Specification (Metric)	Specification (Imperial)
  Model	Phoenix	Phoenix

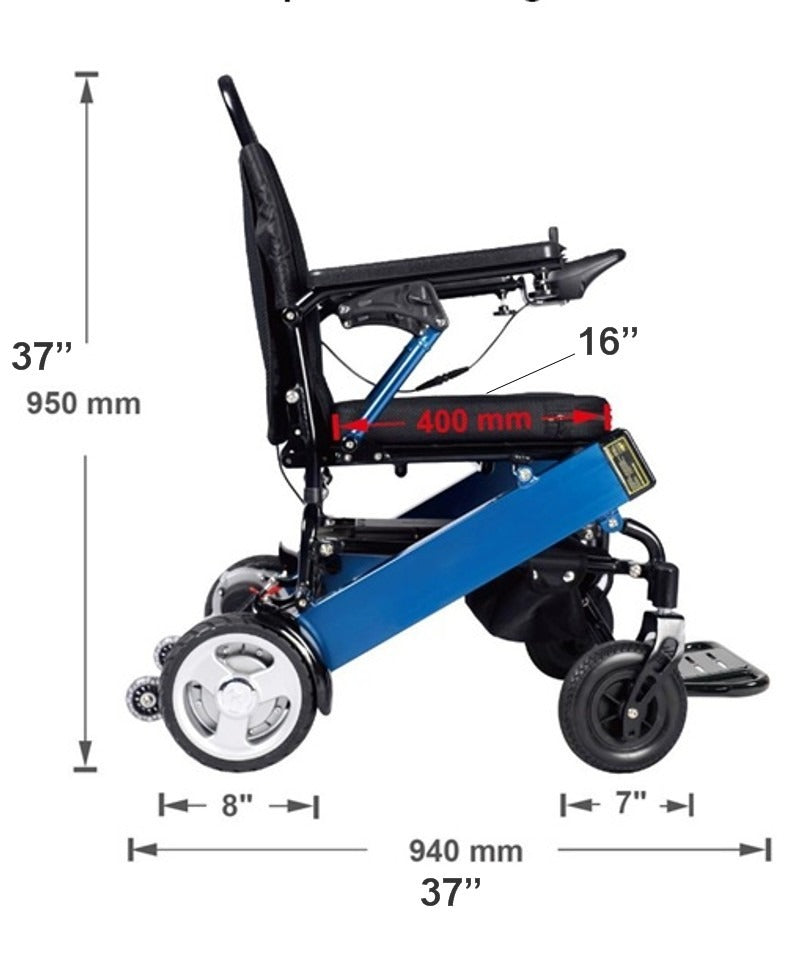

  Unfolded Size (LWH)	940 mm * 630 mm * 950 mm	37" * 24.5" * 37"
  Folded Size (LWH)	640 mm * 320 mm * 750 mm	25" * 12.5" * 29"
  Weight Capacity	120 kg	265 Lbs
  Seat Width Between Arms	482 mm	19"
  Seat Cushion Width	482 mm	19"
  Seat Cushion Depth	421 mm	17"
  Seat Height	457 mm	18"
  Back Height	400 mm	15.75"
  Motor Type	brushless DC motor	brushless DC motor
  Rated Power	180 W * 2 pcs	180 W * 2 pcs
  Input Power	DC 24V	DC 24V
  Brake System	intelligent electromagnetic brake	intelligent electromagnetic brake
  Battery Type	Lithium Battery (Airline Approved)	Lithium Battery (Airline Approved)
  Battery Capacity	150 Watt Hour Each * 2 pcs	150 Watt Hour Each * 2 pcs
  Battery Output Voltage	DC 24V	DC 24V
  Controller Type/Plug Type	assist type/European standard, 2 core	assist type/European standard, 2 core
  Controller Input Power	AC 100-220 V, 50-60Hz (International)	AC 100-220 V, 50-60Hz (International)
  Controller Output Voltage/Current	DC 24V, 2A	DC 24V, 2A
  Front Caster (diameter x width)	180 mm x 45 mm	7" x 1.77"
  Front Caster Type	solid tire	solid tire
  Front Caster Material	PU	PU
  Number of Front Casters	2 PCS	2 PCS
  Rear Wheel Outer Diameter/Tire Width	203 mm x 57 mm	8" x 2.25"
  Rear Wheel Type	solid tire	solid tire
  Rear Wheel Material	PU	PU
  Number of Rear Wheels	2 PCS	2 PCS
  Weight Without Battery	21 kg	44 Pounds
  Weight With Two Batteries	23.5 kg	52 Pounds
  Maximum Grade	14°	14°
  Driving Range (with two batteries)	35 km	22 Miles
  Max Speed	6 km/h	3.75 mph
  Turning Radius	835 mm	32"
  Highest Obstacle Capability	40 mm	1.57"
  Owners/Users Manual	Phoenix Power Wheelchair Manual	Phoenix Power Wheelchair Manual
