P-Lift Series Residential Wheelchair Lift

The P-Lift Series residential wheelchair lift is now America's favorite wheelchair lift with a 850 pound capacity and the ability to lift up to 50, 60 or 72 inches. The P-Lift Series wheelchair will give you back your freedom providing access to the world as well as to areas you were never able to gain access to before. The p-lift-series is one of the smoothest products available when installed and adjusted to factory specifications. By utilizing a screw design the p-lift-series wheelchair lift is inherently safe and you are not exposed to the safety issues that chain driven lift are exposed to. Residential porch lifts are a simple, affordable solution for creating easy home access. Even a few steps can be a large barrier to someone with limited mobility. A p-lift-series residential wheelchair lift is designed for indoor or outdoor use to provide a safer home environment and a better quality of life. The p-lift-series residential wheelchair lift. Is equipped with a keyed ignition lockout so individuals & children can not use the lift when you do not want them using it. The p-lift-series also has an emergency stop button and a second keyed locking panel for access to controls.

Features:

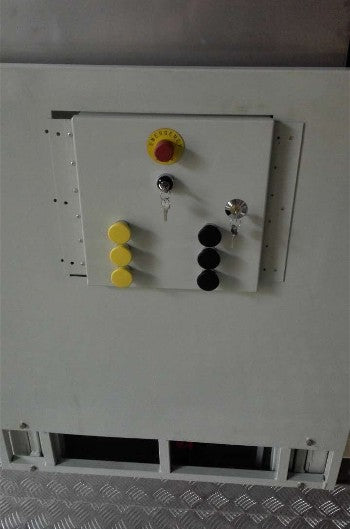

• The p-lift-series is the only residential wheelchair lift with three target buttons for up as well as three target buttons for down, this gives a disabled user a far greater range and ability to operate the lift themselves without the need of an aid or 2nd individual to activate the lift.
• The 90 degree platform option (shown to the left) allows users to turn left or right to exit once they enter the lift. The standard orientation is straight through. Meaning you enter from one side and go straight through exiting the opposite side once lifted.
• Automotive residential commercial portable high-travel low-profile industry brands
• P-Lift Series residential wheelchair lift
• The P-Lift Series residential wheelchair lift now america's favorite wheelchair lift with a 850 pound capacity and the ability to lift up to 50, 60 or 72 inches. The P-Lift Series wheelchair will give you back your freedom providing access to the world as well as to areas you were never able to gain access to before.
• The p-lift-series is one of the smoothest products available when installed and adjusted to factory specifications.
• By utilizing a screw design the p-lift-series wheelchair lift is inherently safe and you are not exposed to the safety issues that chain driven lift are exposed to.
• Residential porch lifts are a simple, affordable solution for creating easy home access. Even a few steps can be a large barrier to someone with limited mobility. A p-lift-series residential wheelchair lift is designed for indoor or outdoor use to provide a safer home environment and a better quality of life.
• The p-lift-series residential wheelchair lift. Is equipped with a keyed ignition lockout so individuals & children can not use the lift when you do not want them using it.
• The p-lift-series also has an emergency stop button and a second keyed locking panel for access to controls.
• The p-lift-series is the only residential wheelchair lift with three target buttons for up as well as three target buttons for down, this gives a disabled user a far greater range and ability to operate the lift themselves without the need of an aid or 2nd individual to activate the lift.
• The 90 degree platform option (shown to the left) allows users to turn left or right to exit once they enter the lift. The standard orientation is straight through. Meaning you enter from one side and go straight through exiting the opposite side once lifted.

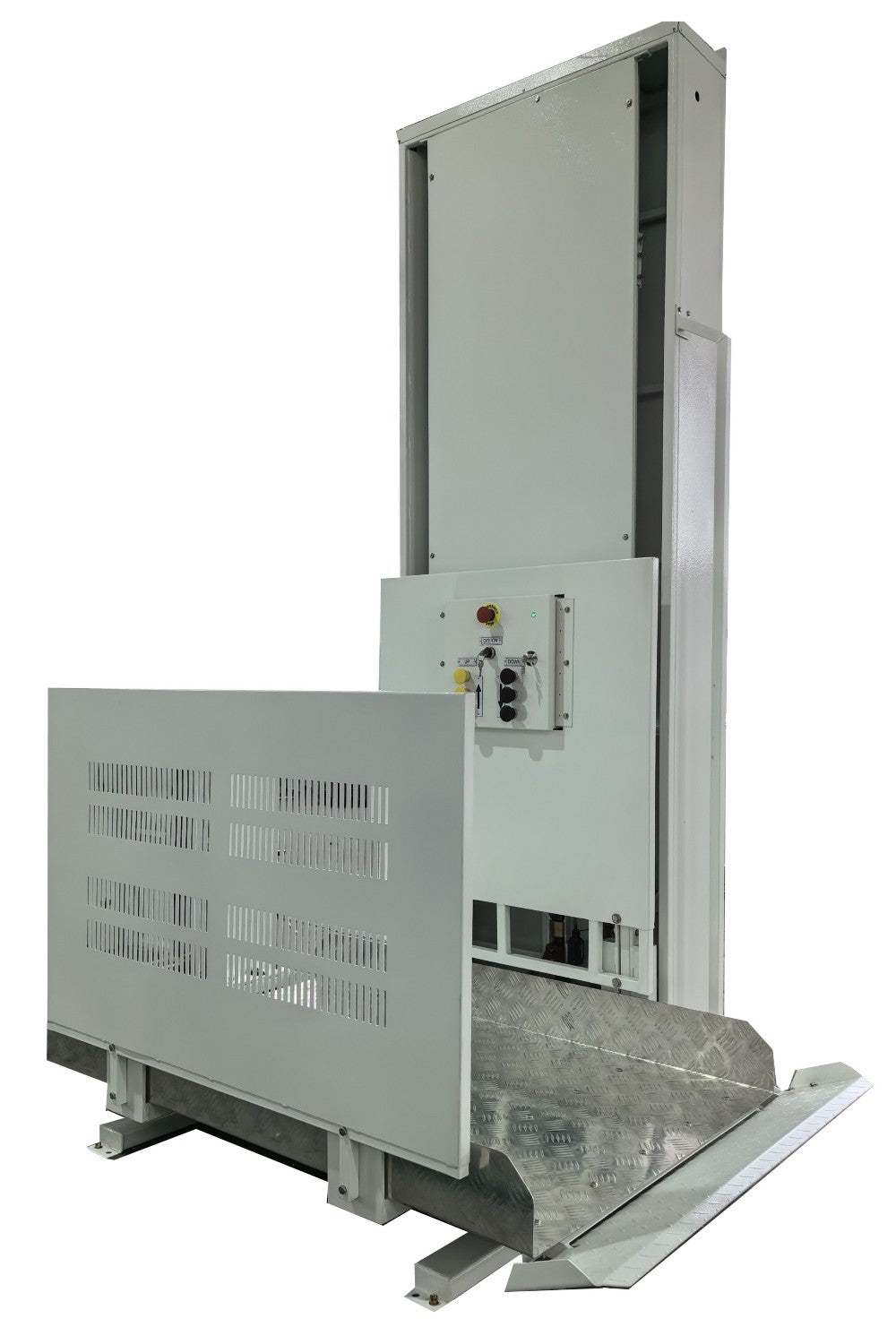

• The p-lift-72 option allows users to travel a full 72" or 6' (six feet)
• The 72 option is also reversible allowing the tower to be placed on either side and as with the 50 or 60 model the 72 has a upper limit switch that once adjusted will stop the lift perfectly where you need it automatically every time.
• The straight through p-lift-series can be configured any way a user would like. Meaning the tower can be placed on either side and the same goes for the fully automatic folding ramp & barrier.

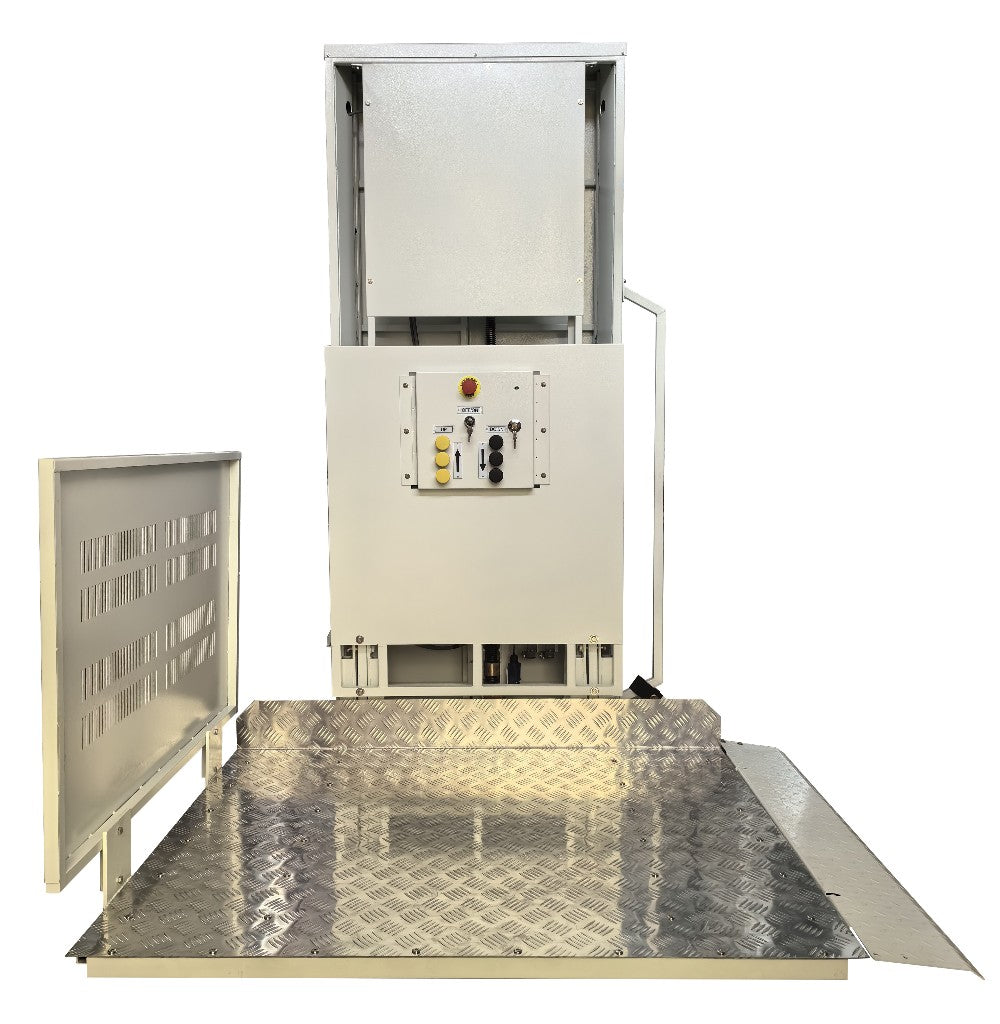

• The 90 degree access option provides a wider platform. This allows a wheelchair to turn and then exit the lift. Once again the tower is reversible as is the folding barrier ramp giving the 90 degree all the flexibility of the straight through version.
• Note: the 90 degree access option is only available when ordering the p-lift-series & not available when ordering the p-lift-72.
• The flexibility for the p-lift-series to accommodate any configuration or orientation required is the envy of most other manufacturers or competitors.
• When you combine the flexibility of orientation, with any configuration, extreme reliability, diamond plate deck, weight capacity of 850 lbs & wireless remote then it is easy to see the p-lift-series is a superior product.

Specifications

• Constant pressure operation – for safety
• Up to 850lb weight capacity
• 8 ft/min travel speed
• Total travel: 50 inch
• Synchronous geared belt drive with brake
• Screw design
• Durable powder coated steel construction
• 1 x 110 vac single phase, 15a power required
• Platform size: 34in (wide) x 54in (long)
• Keyed lock out
• Emergency stop button
• Solid diamond plate platform
• Solid hand wall
• Upper & lower limit switch
• Up & down button x 3 (for increased target area)
• Reversible platform & automatic ramp
