Sky Track Ceiling Lift S450
Sky Track Ceiling Lift S450
The sky track S450 is now available. The industry has long anticipated its arrival & availability as the sky track S450 has many features never seen on any other patient ceiling lift. For example the laser positioning lights that align the lift with the patient providing a perfect transfer every time. The industry is very excited about this feature as it benefits both the patient & caregiver, even institutions have expressed the strong benefits the positioning lights have to offer.
- Fully automatic power up & down as well as side to side with the simple push of a button.
- 450 lb capacity.
- Lifting strap/range: 10 ft.
- Motion sensors are yet another feature that is new and have never been found on any ceiling lift to date. Although motion sensors have been strongly recommended by individual of industry & users the new S450 is the only ceiling lift with this feature.
- Motion sensors on both sides of the lift will stop the lift from moving horizontally when the sensors since a object in its path.
- Red emergency pull cord stops the left instantly.
- The photo to the left shows a example how the laser light aligns the ceiling lift with the patient.
- Care givers and medical professionals have a difficult time determining if ceiling lift is positioned correctly as it is normally four feet over their heed looking up.
- Again this photo shows how the laser positioning light aligns the lift to the user/patient.

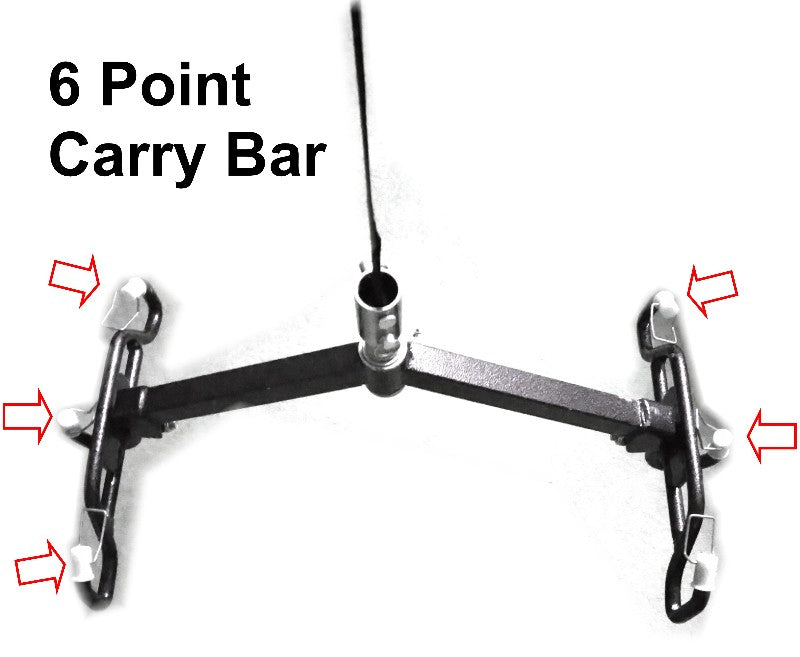

- Six point carry bar.
- Most carry bars are a simple two points however with only two attachment points it limits what sling you may use.
- A four point carry bar expands your ability to use many other slings.
- A six point carry bar will allow you to use almost any sling you choose.

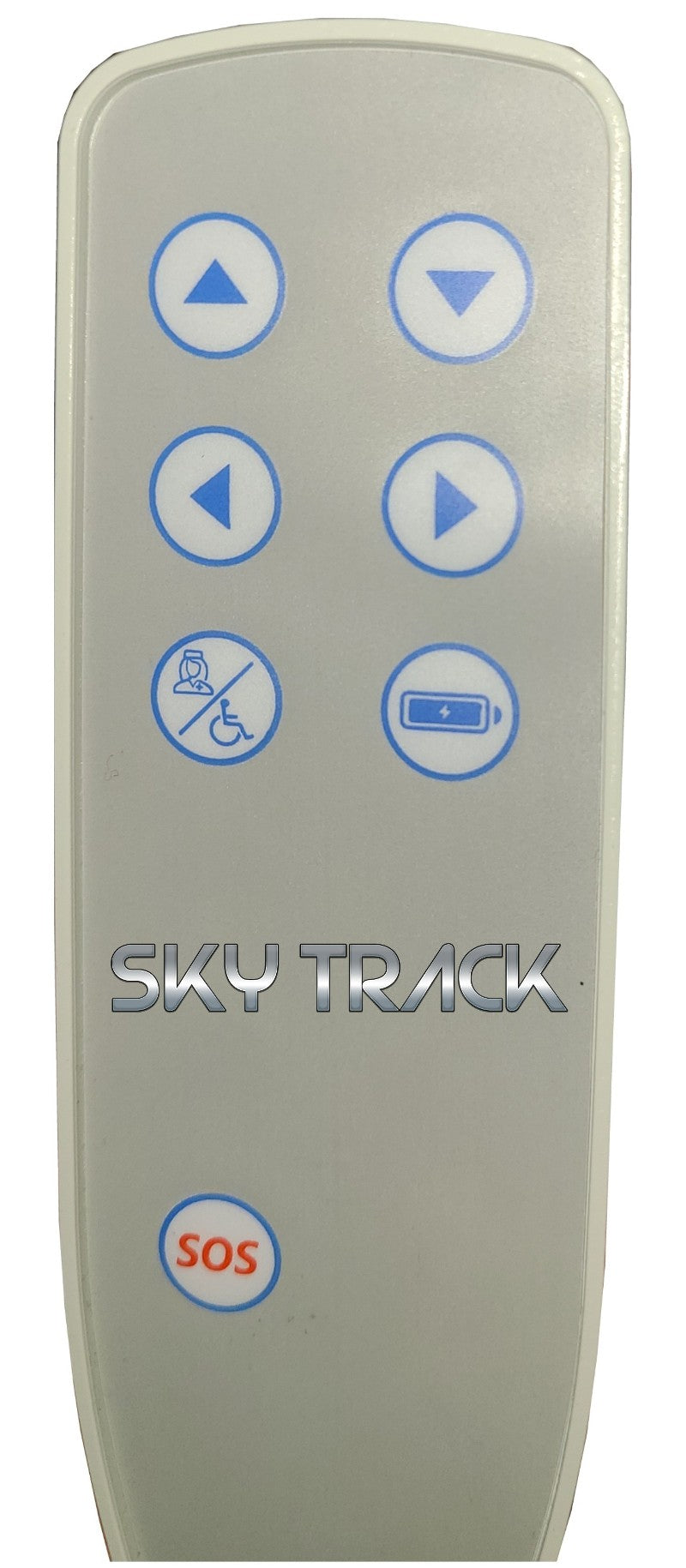

- The sky track has a 12 ft tethered remote that allows a care giver/nurse full control over moving the S450 up & down or side to side.
- The remote also has a stress call button letting others know help is needed.

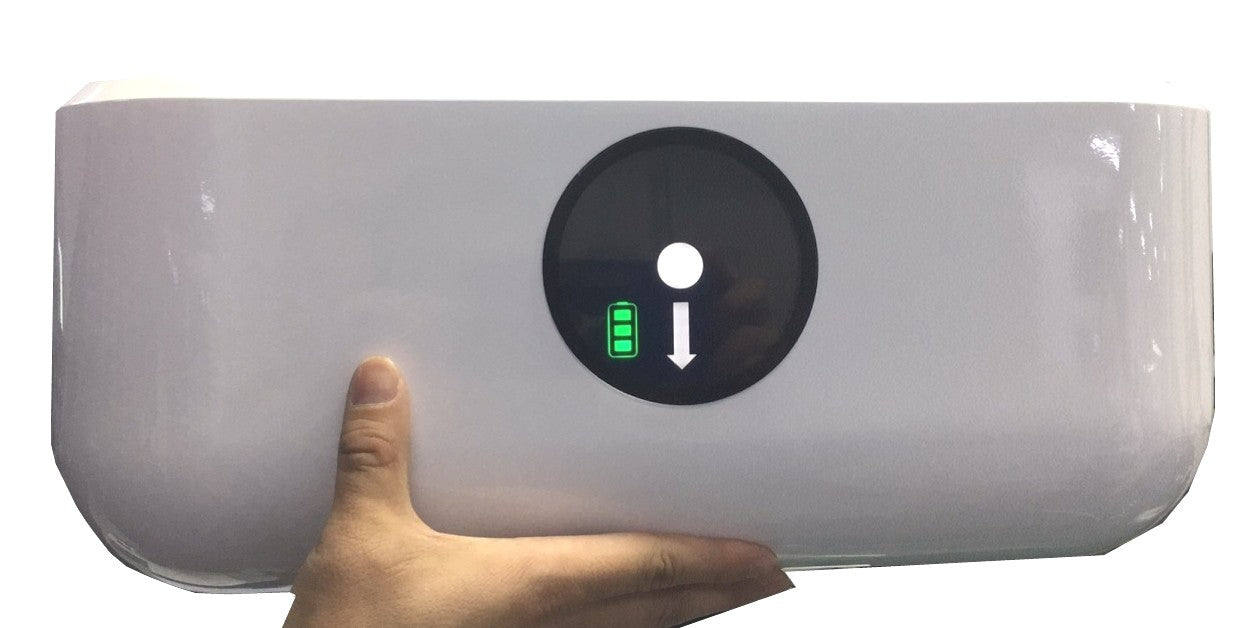

Note: handsets that are pneumatic are problematic & not very reliable. The remote handset on the S450 a completely electronic. Not pneumatic. Making it very reliable & problem free. The sky track S450 has three individual digital displays. This is very helpful just operating the S450. The main digital display (shown below) tells you if you are directing the lift to go up or down as well as right or left. In addition it tells the user how much battery life is left on the battery and even indicate on the display when the S450 lift is being charged through the automatic end rail charger. The sky track S450 is equipped standard with lithium-ion batteries. Lithium-ion batteries are far more reliable then the lead acid and last ten time longer prior to going bad and needing to be replaced. Also lithium-ion batteries normally charge in under one hour where as standard sla batteries normally require eight hours to charge.
Feature | Specification |
---|---|
Model | S-450 |
Lift Motor | 24 VDC |
Traverse Motor | 24 VDC |
Charger Input | 120 VAC, 1.0 Amp |
Charger Output | 24 VDC, 5 Amp |
Battery | 24 VDC 20 AH Lithium-ion |
Hand Control | Completely Wired (Very Reliable) |
Lifting Height | 84" (213 cm) |
Carry Bar | 6 Point Carry Bar |
Unit Weight | (18.5 kgs) |
Maximum Load | 450 lbs. (204 kgs) |
Motion Sensors | Both Right & Left |
Laser Positioning Light | Yes (Position Patient Perfectly Every Time) |
1st Digital Display | Indicates Charge Level. Up, Down, Left, Right & More |
2nd Digital Display | Indicates On or Off Charger. Mode & More |
3rd Digital Display | Error Displays & Troubleshooting |
User Manual | Sky Track User Manual PDF |
Digital Displays | Sky Track $450 Display PDF |
